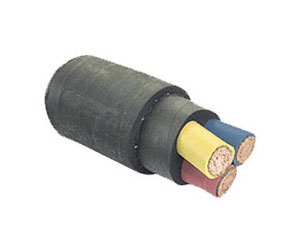

Rubber Cables
In keeping with the company’s commitment to technological advancement, elastomer materials such as Polychloroprene (PCP), Chloro-Sulphoneted Polyethelene (CSP), Nitrile Rubber / PVC blends, Ethylene Propelene Rubber (EPR), Ethylene Vinyle Acetate (EVA) and Silicone have been specially compounded to meet numerous heat oil and fire resisting requirements. In the recent years KEI has also developed special Elastomeric Fire Survival Cables for power, control and instrumentation wiring.
Elastomeric compounds for insulating and sheathing of cables are formulated to meet the requirement of IS 6380, BS 6899, IEC 60502 and other international specification.
General Construction (Conforming to IS 9968 Part 1):
| Conductor: | 0.4 mm dia (0.126 Sq.mm) to 2.5 sq.mm. or higher sizes of electrolytic copper wire, Tinned/untinned, solid/stranded copper conductors. |
| Insulation: | 70/85/105oC. Grade PVC, Polyethylene, Halogen Free FRLS Polymeric Compounds. |
| Elements: | Pairs/Triples/Quads, colour coded/number printed ring marked/dual colour extruded. |
| Shields: | Aluminium Polyester tape screen with Copper drain wire or alternately with with Copper wire braiding. Individual element or overall shielding as specified. |
| Element laying: | Concentric formation or unit & group formation as per applicable specification. |
| Amounting: | Galvanised steel wire/strip amount. |
| Sheathing: | PVC 70/90oC. grade, PVC FRLS, ZHFR, CSP, PCP, EVA, etc. |
| Specification: | BS:5308 (1 & 2), iec-189 (1 & 2), VDE 0815, ENI 0181.00 and customers specifications. |
Rubber Cables
| ELASTOMERIC CABLES RANGE | APPLICATION |
|---|---|
| CABLES UP TO 11KV | Machine Trailing, Mining, Power |
| FLEXIBLE TRAILING CABLES | Reeling unreeling, Trailing, Festooning, Mobile Machines, Cranes, Coal Handling and Conveyors |
| MINING CABLES | FT or Pliable Armoured or Landline type As per IS 14494, NCB specs for UG , Open cast, Coal or other mines and mining machines |
| THERMAL POWER PLANTS | For coal handling plants, flexible power and control application |
| CABLES FOR STEEL PLANTS | Flexible and high temp withstanding cables for furnace, melting shops, material handling |
| WIND ENERGY | Flexible cables for power and control for Wind Mill generator connection |
| FIRE SURVIVAL CABLES | Fire Survival for 3 Hrs or 20 Min |
| SHIP WIRING | As per IEC specs and Naval specs DGS or DEFSTAN, NES |
| OFFSHORE and ONSHORE | For Platforms and Rigs as per IEC and BS or NEK specs |
| SHORE SUPPLY AND GENERATOR CABLES | For charging of ship batteries and supply from mobile generators |
| MOTOR COIL LEADS | Elastomeric and Silicon as per IS, BS, or OEM specs |
| HIGH TEMP CABLES | Silicon insulated, glass fiber braided or unbraided |
| PUMP CABLES | For Water , submersible and sewerage pumps |
| CABLES FOR RAILWAYS | Coach wiring, Metro railway |
| WIRES FIRE | HFFR Low toxic emission under |
| PANEL WIRING | For flexible, high power high temp zone, polluted or moist atmospheres |
| BATTERY CABLES | For High current and long life |
| LOW TEMPERATURE INSTALLATIONS | Suitable for subzero temp. installations and operations |
| MISC. APPLICATIONS | Outdoor High mast lighting, Site power supply, White goods, Oil or Chemical resistant |
| TYPES | Power and Control cables up to 61 Cores Instrumentation Pairs 30 pairs, triads, quad Wires, Flat cables |
| VOLTAGE GRADES | 11KV, 6.6KV, 3.3KV, 1.1KV, 750V, 250V, 110V, 60V |
| CONDUCTOR RANGE | 0.5 to 630 Sq.mm |
| POLYMERS PROCESSED | EPR, EPDM, PCP, CSP, CPE, SILICON, EVA HALOGENFREE AND FIRE RESISTANT COMPOUNDS NON TOXIC COMPOUNDS |
| BRAIDING OFFERED | ATC, GI wire braid, Synthetic or Textile yarn, Glass Fiber |
| ARMOURING | Pliable armour or steel /copper wires/Stainless steel wires |
