Winding Wires

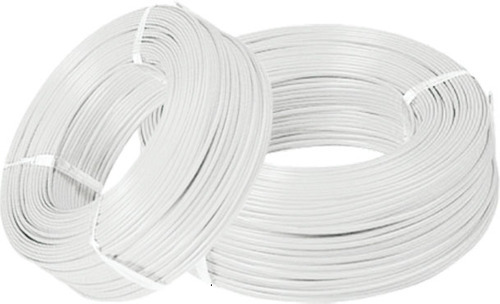

KEI’s PVC Winding Wires are insulated with a special grade of PVC compound as per IS 5831 to give it the needed electrical strength as well as resistance to abrasion. Our PVC insulated Winding Wires serve maximum range of submersible pump manufactures and thousands of rewinders across the country due to our fine quality products.
The poly wrapped Submersible Winding Wires are also manufactured using high quality raw materials and by latest technology in complete compliance with the set industrial norms. Offered in different power capacities and lengths, these wires are widely used in domestic submersible water pumps and irrigation pumps. These Submersible Winding Wire is tested on various parameters in order to deliver flawless range to the clients. Apart from these two varieties as mentioned we make full range of flat 3 core submersible cables for power supply.
Winding Wires / 3 Core Flat Cables for Submersible Pumps
HR PVC Insulated Winding Wires as per IS:8783 (Part 4/Sec I) 1995
| Basic Code | Conductor Diameter (Nom) mm | Thickness of Insulation (Min) mm | Overall Diameter (Approx.) mm | Conductor Resistance at 200C (Max) Ohms/Km |
|---|---|---|---|---|
| KWS-0060 | 0.6 | 0.25 | 1.17 | 62.20 |
| KWS-0070 | 0.7 | 0.30 | 1.37 | 45.70 |
| KWS-0080 | 0.8 | 0.30 | 1.47 | 35.00 |
| KWS-0090 | 0.9 | 0.30 | 1.57 | 27.60 |
| KWS-0100 | 1.0 | 0.30 | 1.67 | 22.40 |
| KWS-0110 | 1.1 | 0.30 | 1.77 | 18.50 |
| KWS-0120 | 1.2 | 0.30 | 1.87 | 15.50 |
| KWS-0130 | 1.3 | 0.30 | 1.97 | 13.20 |
| KWS-0140 | 1.4 | 0.35 | 2.17 | 11.40 |
| KWS-0150 | 1.5 | 0.35 | 2.27 | 9.95 |
| KWS-0160 | 1.6 | 0.35 | 2.37 | 8.75 |
| KWS-0170 | 1.7 | 0.35 | 2.47 | 7.75 |
| KWS-0180 | 1.8 | 0.35 | 2.62 | 6.91 |
| KWS-0190 | 1.9 | 0.35 | 2.72 | 6.20 |
| KWS-0200 | 2.0 | 0.45 | 3.02 | 5.60 |
| KWS-0210 | 2.1 | 0.45 | 3.12 | 5.08 |
| KWS-0220 | 2.2 | 0.45 | 3.22 | 4.63 |
| KWS-0230 | 2.3 | 0.45 | 3.32 | 4.23 |
| KWS-0240 | 2.4 | 0.50 | 3.52 | 3.89 |
| KWS-0250 | 2.5 | 0.50 | 3.62 | 3.58 |
| KWS-0260 | 2.6 | 0.50 | 3.72 | 3.31 |
| KWS-0270 | 2.7 | 0.50 | 3.82 | 3.07 |
| KWS-0280 | 2.8 | 0.55 | 4.02 | 2.86 |
| KWS-0290 | 2.9 | 0.55 | 4.12 | 2.66 |
| KWS-0300 | 3.0 | 0.55 | 4.22 | 2.49 |
3 Core Flat Cables
| Basic Code | Area sq. mm | Number/size of Wire No./mm | Insulation Thickness mm | Sheath Thickness mm | Width ‘W’ (App) mm | Thickness ‘T’ (App) mm | Resistance at 200C (Max.) ohm/Km | Current carrying capacity at 400C Amps |
|---|---|---|---|---|---|---|---|---|
| K3FL-2230 | 1.5 | 22/0.3 | 0.6 | 0.90 | 11.0 | 5.0 | 12.10 | 14 |
| K3FL-3630 | 2.5 | 36/0.3 | 0.7 | 1.00 | 13.0 | 6.0 | 7.40 | 18 |
| K3FL-5630 | 4.0 | 56/0.3 | 0.8 | 1.00 | 15.3 | 6.7 | 4.95 | 26 |
| K3FL-8430 | 6.0 | 84/0.3 | 1.0 | 1.15 | 18.7 | 7.9 | 3.30 | 31 |
| K3FL-14030 | 10.0 | 140/0.3 | 1.0 | 1.40 | 23.7 | 9.9 | 1.91 | 42 |
| K3FL-22630 | 16.0 | 226/0.3 | 1.0 | 1.40 | 28.0 | 11.4 | 1.21 | 57 |
| K3FL-35430 | 25.0 | 354/0.3 | 1.2 | 2.00 | 35.5 | 14.7 | 0.780 | 72 |
| K3FL-49530 | 35.0 | 495/0.3 | 1.2 | 2.00 | 39.5 | 16.2 | 0.554 | 90 |
| K3FL-70330 | 50.0 | 703/0.3 | 1.4 | 2.20 | 45.5 | 18.3 | 0.386 | 115 |
| K3FL-36050 | 70.0 | 360/0.5 | 1.4 | 2.20 | 51.0 | 20.0 | 0.272 | 143 |
| K3FL-47550 | 95.0 | 475/0.5 | 1.6 | 2.40 | 60.0 | 23.5 | 0.206 | 165 |
